Smart VOV汽車冷氣智慧型毛細管冷房效率好又省油.冷氣又冷AUDI FORD VOLOVO ...GM等車種 毅修汽車 試用後效果一級棒.國外訂貨限量回來開賣.
Now your customers can have:
- 5° - 12°F colder air (at hot idle)
- 出風口溫度降低2.78°C-6.67°C
- Reduced compressor load and extended compressor life
- 減少壓縮機負載以及延長壓縮機壽命
- Improved performance when converting from R-12 to R-134a
- 可提升R-12 轉 R-134a效能
- Improved city fuel economy & emissions
- 提升市區燃油效能以及減少廢氣排放
- Improved performance in factory R134a systems
- 提升r134a效能
-

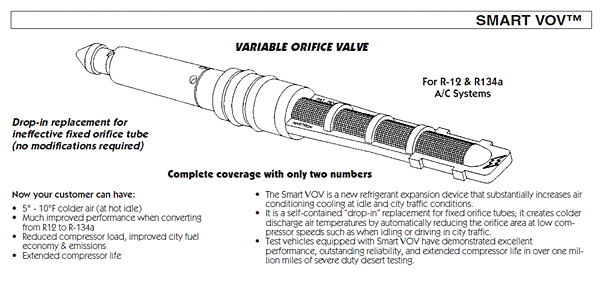

The Smart VOV was successfully tested for over two years in the desert in severe use vehicles (for more than 2,000,000 miles). U.S. automakers are proving the Smart VOV as a replacement for the orifice tube.
The Smart VOV is a new refrigerant device that substantially increases air conditioning cooling at idle and city traffic conditions.
It is a self contained "drop-in" replacement for all orifice tubes; it creates colder discharge air temperatures by automatically reducing the orifice area at low compressor speeds such as when idling or driving in city traffic.
The Smart VOV variable orifice opens to a larger size at highway speeds to maintain pressures comparable to, or lower than a standard orifice tube.
Compressor life can be significantly increased because of the reduced compressor load; in hot ambient highway patrol testing, compressor failures were reduced by a factor of ten.
This innovative valve can even improve fuel economy, especially in city driving conditions.
Test vehicles equipped with Smart VOV have demonstrated excellent performance, outstanding reliability, and extended compressor life in over two million miles of severe duty desert testing.
該 智能VOV 是一個新的製冷劑的設備,大大增加空調在閒置和城市交通條件冷卻。
這是一個自包含的“插入式”替代所有孔口管; 它創建較冷的排氣溫度自動減少在低轉速壓縮機的開口面積,例如怠速或在城市交通中駕駛時。
該 智能VOV 可變孔口在高速打開到更大尺寸,以保持比標準孔管相媲美,或者更低的壓力。
壓縮機壽命,因為減少了壓縮機的負載來顯著增加; 在炎熱的環境高速公路巡警測試,壓縮機故障是由十一個因素減少。
這種創新的閥門,甚至可以提高燃油經濟性,尤其是在城市駕駛條件。
配有測試車 智能VOV 已經證明,在超過2000000英里嚴重責任的沙漠測試的優異性能,卓越的可靠性,並延長壓縮機壽命。

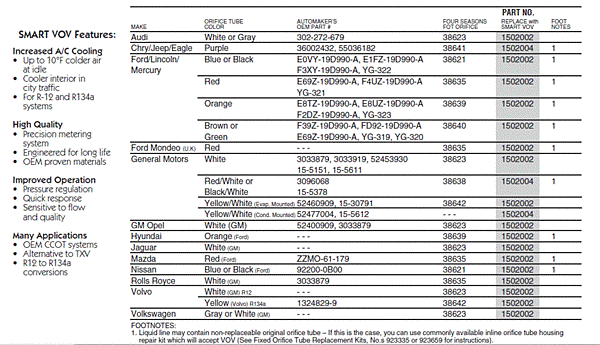

Increased A/C Cooling | Pressure Reduction Feature |
Up to 12 ° F colder air at idle Cooler interior in city traffic For R12 and R134a systems |
Increases area at idle pressures Extends compressor on-time Increases comfort at idle |
High Reliability | Reduced Expansion Noise |
Engineered for long life Large internal clearances Low friction metering design |
Tuned to reduce shutdown noise Reduces most running noise Lowers most startup noise |
High Quality | Improved Operation |
Precision metering system Durable steel spring OEM proven materials |
Pressure regulated Quick response Sensitive to flow and quality |
Safe Failure Mode | Many Applications |
Automatically opens to largest area Functions like original orifice tube Minimizes compressor pressure |
OEM CCOT systems Alternative to TXV R12 to R134a Conversions |
傳統毛細管..AUDI FORD FOCUS ESPACE METROST MONDEO VOLOVO .吉普車.克雷斯克.GM等車種
一般的毛細管與可調式毛細管一樣同溫高壓...智慧型的溫度比較冷..冷房效率好..隨時調整噴量...智慧型毛細管.

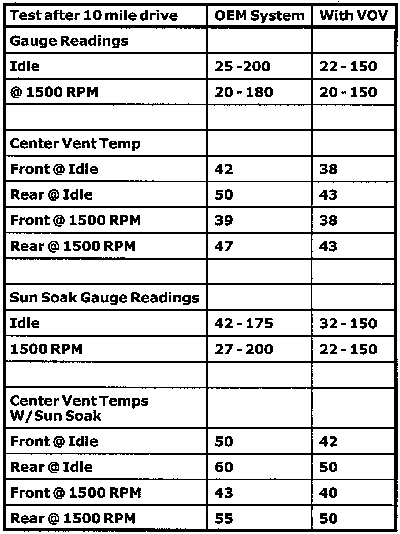

國外測試報告說明:怠速時一般毛細管OEM System低壓25 高壓200 使用VOV毛細管智慧型的低壓22高壓150
OEM 42度F 5.5度C VOV38度F 3.3度C 一樣毛細管相差2.2度C 智慧型毛細管VOV冷房效率好.減輕壓縮機負擔.也省油.
傳統毛細管...一般歐洲車使用..寒帶區也是製造廠...來亞熱帶時若是用變頻智慧型會更棒..日系車用膨脹閥...可隨時調整流量達到省油冷房效果..Smart VOV汽車冷氣智慧型毛細管冷房效率好又省油.相同原理..

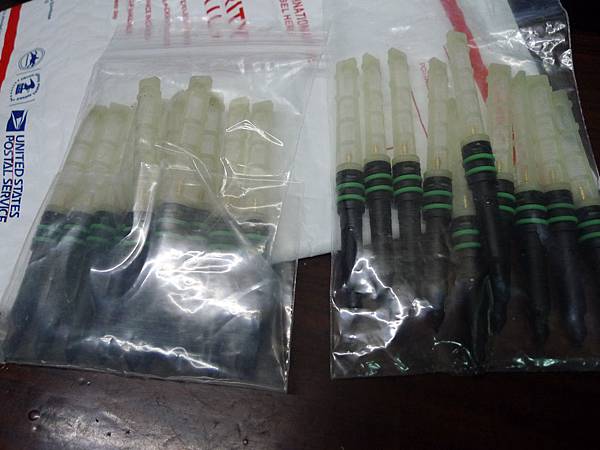

國外訂貨剛到貨20台份..歡迎需要者.AUDI FORD FOCUS ESPACE METROST MONDEO VOLOVO .吉普車.克雷斯克.GM等車種..
